D Series
"D" Series Interlocks
08-299200
08-299700
“D” Lock & Contact
“DW” Lock & Contact – (water resistant)
Must specify Right or Left Hand
Where Used: Manually operated freight doors with latch bars and no cam.
Left Hand Shown
08-399300
08-399700
“DL” Interlock
“DLW” Interlock – (water resistant)
Must specify Right or Left Hand
Where Used: Manually operated freight doors with latch bars and stationary cam.
Left Hand Shown
08-499900
08-499800

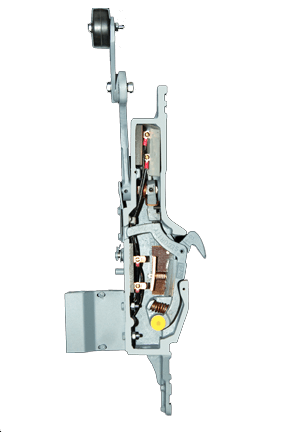

“DLS” Interlock
“DLSW” Interlock – (water resistant)
Must specify Right or Left Hand
Where Used: Manually operated freight doors with latch bars and retiring cam.
Left Hand Shown
"D" Series Interlock Sub Assemblies
08-000100
08-000101
Interlock Shaft
Where Used: DL, DLS
Interlock Shaft
Where Used: DLW, DLSW
08-000201
Interlock Stud
Where Used: D, DW, DL, DLW, DLS
08-000400
Contact Bar
Where Used: D, DW, DL, DLS
08-000600
Contact Bar Support
Where Used: D, DW, DL, DLS
08-001000
Contact Base
Where Used: DL, DLS
08-001611
Contact Lever Stud
Where Used: D, DL, DLS
08-001700
Interlock Keeper
Where Used: D, DL, DLS
08-001800
Shaft Support
Where Used: DLS
08-002205
Terminal Block
Where Used: DLS
08-002300
Insulator Box
Where Used: D, DL, DLS
08-002500
Interlock Spring
Where Used: D, DL, DLS
08-002600
Interlock Spring (1-1/4″ long)
Where Used: D, DL, DLS
08-003100
08-004701
Release Lever
Where Used: DL, DLW, DLSW, DLS
08-004900
Interlock Spacer
Where Used: DW
08-005000
Interlock Keeper
Where Used: DW, DLW
08-005200
Shaft Bearing Washer
Where Usedv: DLW, DLSW
08-033200
08-033300
Interlock Hook
Where Used: D, DL, DLS
08-034102
Interlock Cover
Where Used: DLS
08-036100
Interlock Hook Assembly
Where Used: DW, DLW, DLSW
08-200100
Interlock Filler
Where Used: D
08-401100
Movable Contact Bracket
Where Used: DW, DLW, DLSW
08-401200
Interlock Support
Where Used: DW, DLW, DLSW
08-401300
Stationary Contact Mounting Angle
Must specify Right or Left Hand
Where Used: DW, DLW, DLSW
Left Hand Shown
08-401400
Interlock Spring
Where Used: DW, DLW, DLSW
08-401601
Interlock Cover
(water resistant locations)
Where Used: DW, DLW, DLSW
04-401700
Stud
Where Used: DW, DLW, DLSW
08-402200
Interlock Cover
Where Used: D, DL, DLS
08-750200
Movable Contact
Where Used: DW, DLW, DLSW
08-750400
08-501200
Spring
Where Used: PAS, DW, DLW, DLSW
