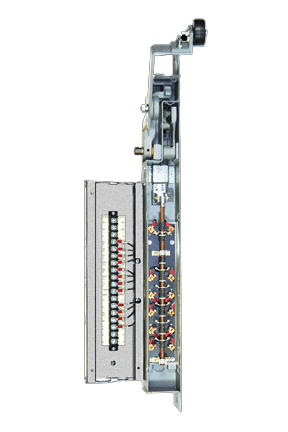

PA Interlock

PA Interlock – extended

PA Interlock – auto sta-set

You must specify either Right or Left Hand

Where Used: Courion “P” style power operated freight doors with retiring cam.

Left Hand Shown

PAE Interlock

PAE Interlock – extended

PAE Interlock – auto sta-set

You must specify either Right or Left Hand

Where Used: Courion “P” style power operated freight doors with retiring cam and emergency unlocking devices.

Left Hand Shown

PAC Interlock

PAC Interlock – extended

PAC Interlock – auto sta-set

You must specify either Right or Left Hand

Where Used: Courion “P” style power operated freight doors with retiring cam, for locations in California

PAS Lock & Contact

You must specify either Right or Left Hand

Where Used: Courion “P” style manually operated freight doors with a fixed or stationary cam

PA Interlock Shaft

PA Interlock Shaft (Extended)

Where Used: All “P” Series Locks

Latch Lever Spring

Where Used: All “P” Series Locks, All “X” Series Locks

Junction Box Cover

Where Used: PA, PAE, PAC

Junction Box

Where Used: PA, PAE, PAC

Interlock Lever

Please specify either Right or Left Hand

Where Used: All “P” Series Locks

Right Hand Shown

EUD Lever – (PAE Interlock Only)

Please specify either Right or Left Hand

Where Used: PAE

Right Hand Shown

Interlock Cam & Pin

Please specify either Right or Left Hand

Where Used: All “P” Series Locks

Interlock Fork Lever

Where Used: All “P” Series Locks

Lock Bar Guide

Where Used: All “P” Series Locks, XHE-2, XHM-2

Keeper

Where Used: All “P” Series Locks

Interlock Cover

Where Used: All “P” Series Locks

EUD Filler

Where Used: PA

Adjustable Bail Pin

Where Used: All “P” Series Locks

PA Contact Assembly

Where Used: All “P” Series Locks

View Sub Assemblies

Adjustable Bail

Where Used: PA, PAE, PAC

Interlock Slide

Please specify either Right or Left Hand

Where Used: PA, PAE, PAC

Switch Assembly

Please specify either Right or Left Hand

Where Used: PAC

Right Hand Shown

Trigger Cam – (PAS Lock & Contact Only)

Please specify either Right or Left Hand

Where Used: PAS

Trigger

Where Used: PAS

Finger

Please specify either Right or Left Hand

Where Used: PAS

Shaft Spring

Where Used: PAS

Interlock Slide

Please specify either Right or Left Hand

Where Used: PAS

Spring Retainer

Where Used: PAS

Spring

Where Used: PAS, DW, DLW, DLSW

Terminal Marker

Where Used: PA, PAE, PAC

EUD Toggle Switch

Where Used: PAE

P Series Interlock Mounting Hardware Kit

Where Used: All “P” Series Locks

Interlock Roller Arm

Where Used: Courion “P” Series Interlocks

Terminal Block (16 points)

Terminal Block (18 points)

Where Used: All “P” Series Locks
