X Series
"X" Series Interlocks
08-699400
08-699401
XHE-1 Interlock
(NEMA 7 & 9 – Hazardous Location)
(Class I, Division 1 & 2, Groups C & D)
(Class II, Division 1 & 2, Groups E, F, & G)
XHM-1 Interlock
(NEMA 4X – Corrosive Location)
Where Used: Manually Operated Freight Doors with Lock Bars and Retiring Cam.
08-699500
08-699501
08-699502
08-699503

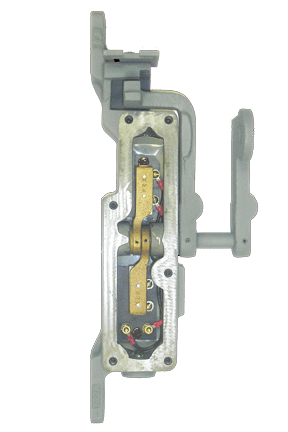

XHE-2 Interlock
(NEMA 7 & 9 – Hazardous Location)
(Class I, Division 1 & 2, Groups C & D)
(Class II, Division 1 & 2, Groups E, F, & G)
XHM-2 Interlock
(NEMA 4X – Corrosive Location)
XHE-2 Interlock with extension
XHM-2 Interlock with extension
Where Used: Power Operated Freight Doors with Lock Bars and Retiring Cam.
Right Hand Shown
08-699700
08-699701
XFE Lock and Contact
(NEMA 7 & 9 – Hazardous Location)
(Class I, Division 1 & 2, Groups C & D)
(Class II, Division 1 & 2, Groups E, F, & G)
XFM Lock and Contact
(NEMA 4X – Corrosive Location)
Where Used: Manually Operated Freight Doors with Lock Bars and Fixed or Stationary Cam.
"X" Series Interlock Sub Assemblies
08-003600
Interlock Spring
Where Used: All “X” Series Locks
08-016600
Contact Bar
Where Used: All “X” Series Locks
08-500100
08-500100S
Interlock Roller
Interlock Roller – Stainless
Where Used: XHE-1, XHM-1
08-500102
08-500102S
Interlock Roller
Interlock Roller – Stainless
Where Used: XFE, XFM
08-600100
08-600100S
Keeper
Keeper – Stainless
Where Used: XFE, XFM
08-600200
Contact Bar Support
Where Used: All “X” Series Locks
08-600300
Contact Post Assembly
Must Specify Right or Left Hand
Where Used: All “X” Series Locks
Left Hand Shown
08-600402
Contact Assembly
Where Used: All “X” Series Locks
08-600500
08-600500S
Lock Bar Slide
Lock Bar Slide – Stainless
Where Used: XHE-1, XHM-1, XFE, XFM
08-600600
08-600600S
Auxiliary Contact Plunger
Auxiliary Contact Plunger – Stainless
Where Used: XFE, XFM
08-600601
08-600601S
Auxiliary Contact Button
Auxiliary Contact Button – Stainless
Where Used: XFE, XFM
08-600700
Roller Pin
Where Used: XHE-1, XHM-1,XFE, XFM
08-600900
08-600901
Interlock Shaft (4-1/4″)
Where Used: XHE-2, XHM-2, XFE, XFM
Interlock Shaft (8″)
Where Used: XHE-1, XHM-1, XHE-2 with extension, XHM-2 with extension
08-601500
08-601500S
Spring Stop
Spring Stop – Stainless
Where Used: XHE-1, XHM-1
08-602400
08-602501
08-602501S
Roller Lever
Roller Lever – Stainless
Where Used: XFE, XFM
08-602502
08-602502S
Roller Lever
Roller Lever – Stainless
Where Used: XHE-1, XHM-1
08-602601
Contact Lever
Where Used: XHE-1, XHM-1, XHE-2, XHM-2
08-603201
Z Bracket
Where Used: XHE-1, XHM-1, XFE, XFM
08-700300
Interlock Spring
Where Used: XHE-1, XHM-1
04-009900
Latch Lever Spring
Where Used: All “P” Series Locks, All “X” Series Locks
04-041601
Lock Bar Guide
Where Used: All “P” Series Locks, XHE-2, XHM-2
08-500300
08-500300S
Contact Lever Spring
Contact Lever Spring (stainless)
Where Used: REV-STD, XFE, XFM
